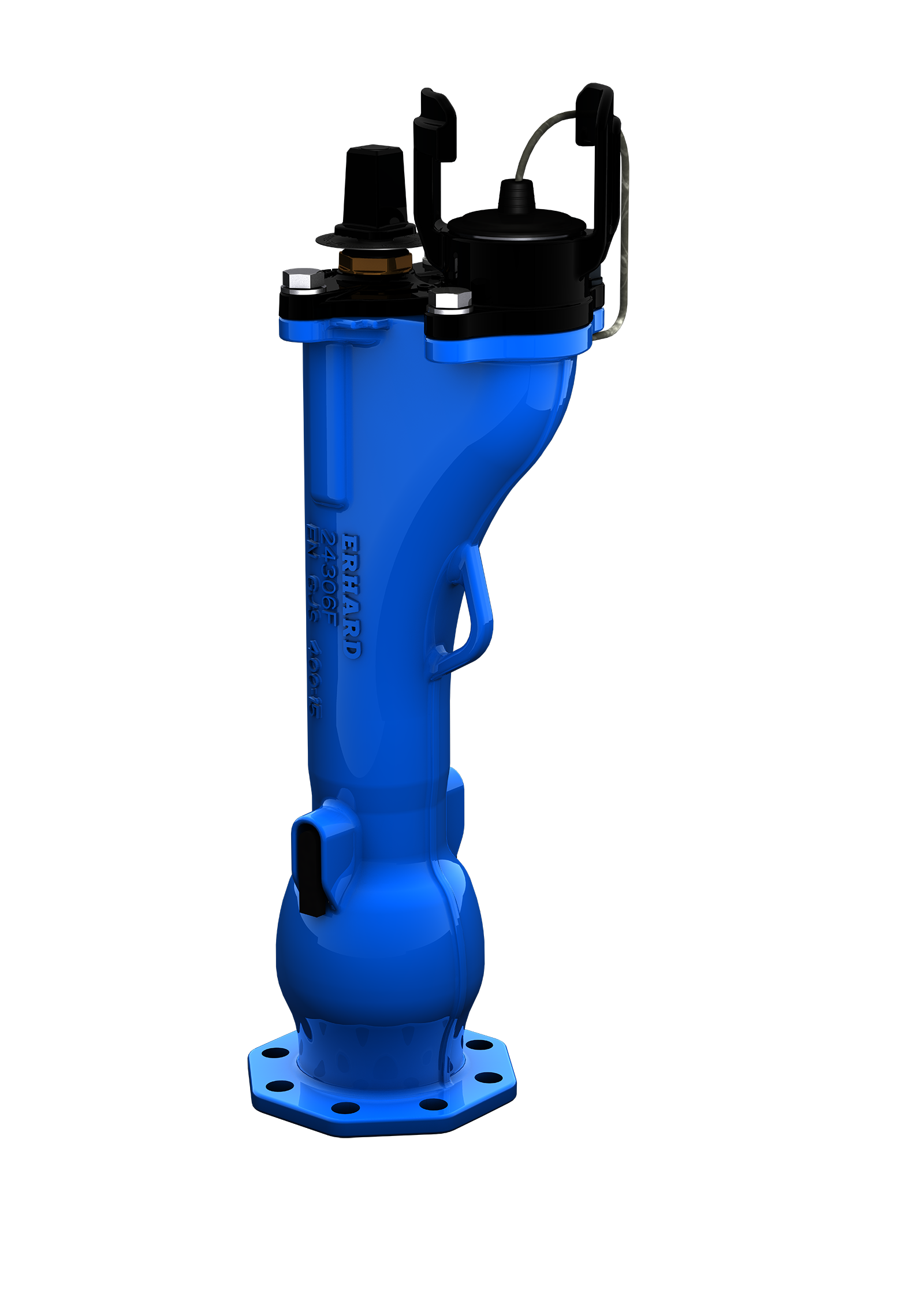

HALIOS Underground hydrant
Safety has top priority:
the new generation of ERHARD underground hydrants.
Nominal size: DN 80-100
Pressure rating: PN 16
Pipe cover: 0.75 / 1.0 / 1.25 / 1.50
Design features:
- Shut-off cone coated on all sides in PUR (EPDM for HALIOS) for high corrosion resistance
- Excellent corrosion resistance with cataphoretic coating and enameled inside and outside (250µm EKB coating for HALIOS)
- Available with single or double shut-off
- Double drainage system: double drainage provides reliable frost protection and sustainable hygiene
- Rounded housing surface ensures a smooth coating to protect against corrosion
- Maintenance-free and medium-free spindle bearing protected by three O-rings and cover protection
- Claw with stop lugs prevents the standpipe from vibrating out
- Sophisticated safety lock prevents the extension spindle from being ejected
- Cast handle on the casing pipe ensures safe handling
- Inlet flange with integrated flange seal facilitates installation in the pipe trench
